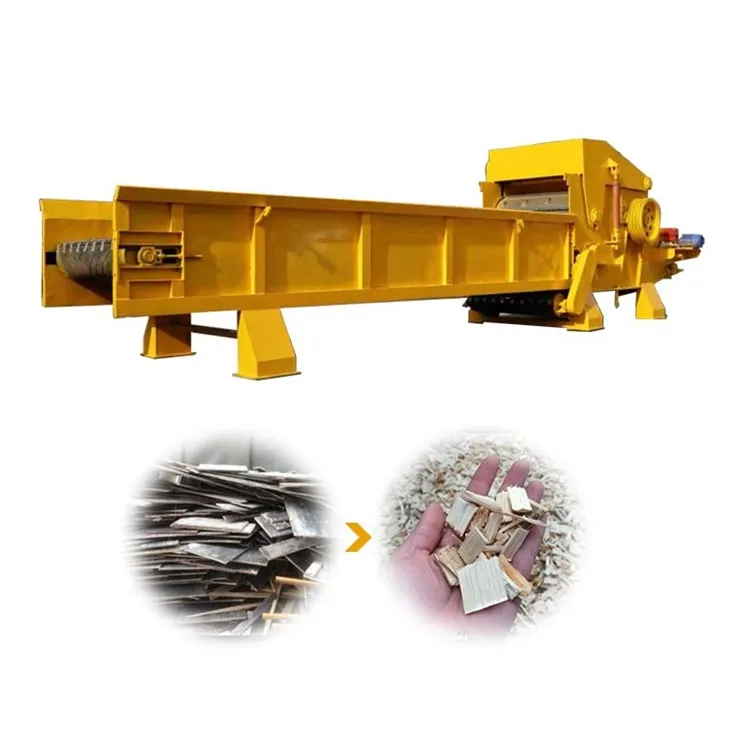

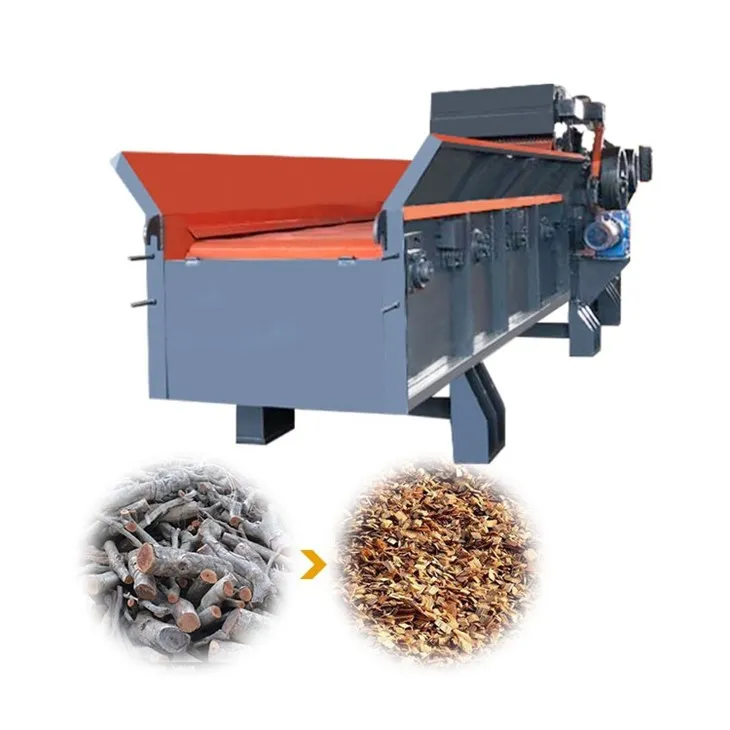

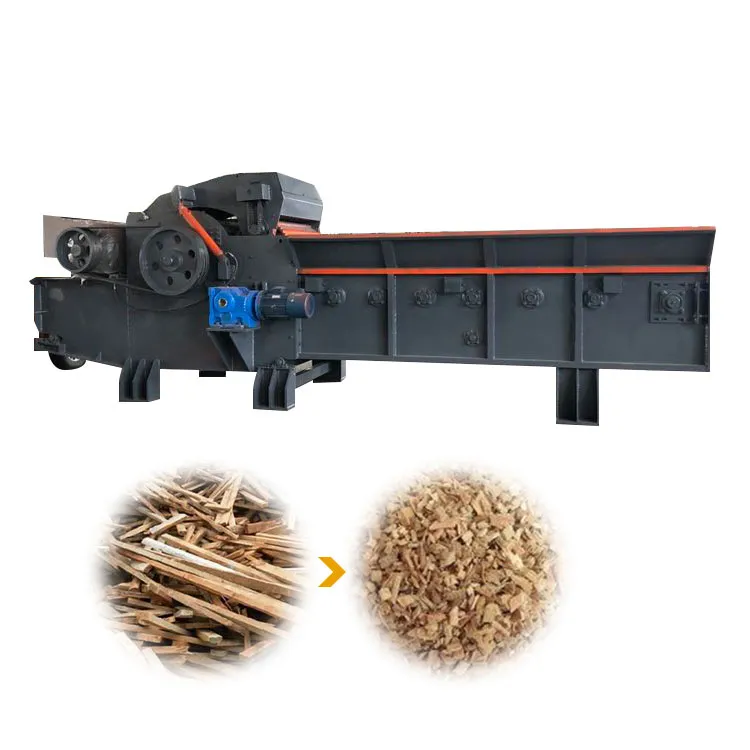

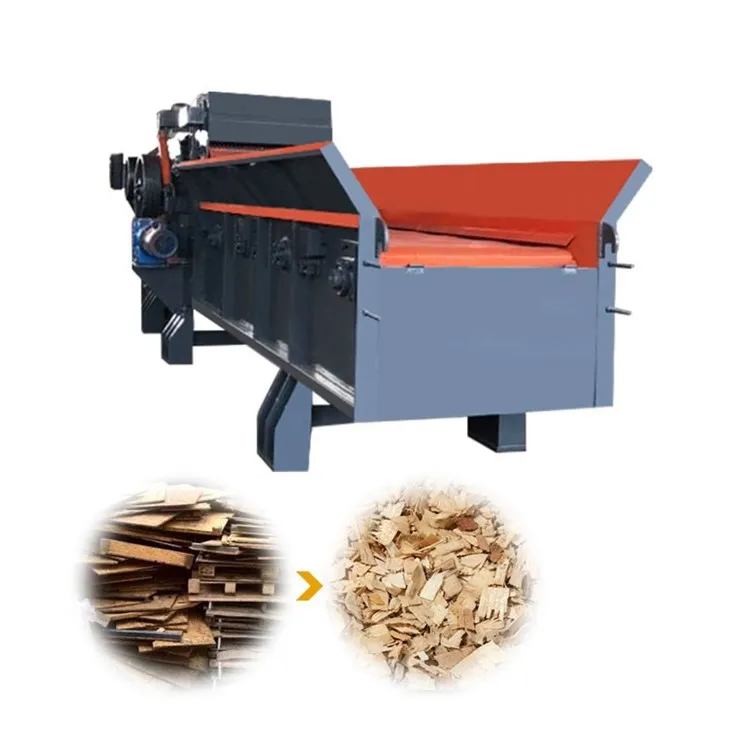

Comprehensive Crusher



Lub Crusher Comprehensive rau kev lag luam siv yog cov khoom siv khib nyiab loj thiab cov khoom siv crushing. Nws tseem yog feem ntau hu ua ntoo crusher. Qhov no shredder yuav shred txhua yam ntawm cov ntaub ntawv ntoo, xws li cav, ceg, ntoo formwork nrog ntsia thawv tsim, ntoo pallets, khib ntoo rooj tog, khib ntoo qhov rooj thiab qhov rais, thiab lwm yam. Qhov no Comprehensive crusher muaj ob hom tsav, hluav taws xob tsav thiab diesel tsav. . Kev ua tau zoo ntawm qhov kev ua tiav crusher no siab heev, thiab kev ua haujlwm muaj peev xwm ib teev nyob nruab nrab ntawm 2t-30t. Feem ntau siv nyob rau hauv ntau yam recycling bins thiab wood processing plant, fais fab nroj tsuag, thiab lwm yam.





Cov ntoo loj loj no muaj ntau yam kev siv, thiab yuav luag txhua cov khoom siv ntoo tuaj yeem raug crushed sai sai nrog nws kom ua tiav cov txiaj ntsig siab. wood comprehensive crusher feem ntau txheej txheem ntau hom ntoo xws li me me txoj kab uas hla ntoo, hardwood, ntoo thuv, ntoo txiav residues xws li ceg thiab cov hauv paus hniav, ntoo ua residues xws li veneer, lath, cav cores, khib nyiab veneer tos).





Cov khoom siv raw nkag los ntawm txoj siv conveyor ntawm qhov chaw nres nkoj pub, thiab tom qab lub twj tso kua mis hydraulic nqa cov khoom raw mus rau hauv Cov Crusher Comprehensive, cov saw tom qab lub nruas crushes cov ntoo rau hauv cov ntoo chips, thiab cov ntoo chips uas ua tau raws li qhov loj me ntawm lub nruas. Qhov chaw nres nkoj tawm tawm los ntawm qhov screen, thiab cov ntoo tsis tsim nyog yuav rov qab mus rau lub tshuab los ntawm txoj siv conveyor thiab raug crushed dua. Qhov chaw nres nkoj tawm siv cov hlau nplaum sib nqus los cais cov ntoo thiab cov ntsia hlau hlau.







Qauv	SL -1300	SL -1400	SL -1600
Pub qhov loj me	1300 * 500 hli	1400 * 800 hli	1600 * 800 hli
Pub ntau txoj kab uas hla	400 hli	500 hli	600 hli
Hniav (pcs)	20	32	66
Muaj peev xwm	8-10t/h	10-15t/h	20-30t/h
Tag nrho lub zog	156,5 qw	213.5 kwm	233.5 qw





Lub tshuab loj loj crusher yog ib tiam tshiab ntawm cov cuab yeej sib tsoo txuas ntxiv tsim los ntawm Shuli Company raws li kev xav tau ntawm kev lag luam thoob ntiaj teb thiab hauv tsev. Cov txheej txheem crusher feem ntau yog tsim los ntawm kev ua haujlwm platform, pub khoom noj, nias cov menyuam, crushing ntaus ntawv, conveyor thiab lwm yam tseem ceeb. Lub tshuab yog compact thiab yooj yim rau kev khiav lag luam.



Pub thiab conveying: daim hlau yuav crushed yuav tsum tau muab tso manually. los yog siv lub conveyor siv

Pub cov menyuam: Tswj cov kev pub mis ceev ntawm lub tshuab los tiv thaiv daim ntawv los ntawm kev swb thiab zam qhov xwm txheej uas lub tshuab tsis pub. Cov menyuam pub noj siv UCK series bearings thiab lub caij nplooj ntoos hlav nias mechanism, uas tuaj yeem hloov kho rau cov khib nyiab ntawm cov thicknesses sib txawv.

Kauv crushing roller: Muaj ntau ntau txheej ntawm vuam riam faib raws li ib ncig ntawm lub crushing roller kom paub meej tias cov crushing cov menyuam raug rau tib lub zog thaum tsiv mus nyob rau hauv lub circumferential kev taw qhia.

Qhov kom zoo dua ntawm template crusher yog tias kev pub mis thiab crushing yog nqa tawm nyob rau tib lub sijhawm, uas tuaj yeem paub txog kev sib tsoo ntawm cov khoom siv raw.

Pub cov menyuam thiab crushing cov menyuam ntawm cov ntoo pallet crusher txais cov tshuab fais fab sib txawv, uas yooj yim los tswj.
